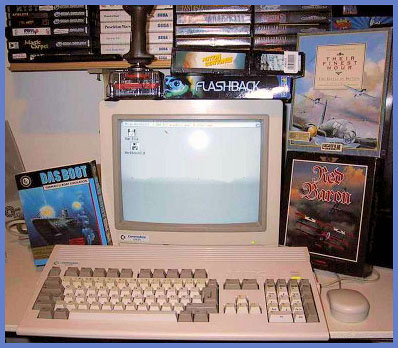

I have two main units, 1 GB Quantum 2,5″ disk, mouse,
Commodore monitor 1084S, power adapter and
CD1200 external CD-Rom controller.
type computer
country USA
year 1992
os rom kickstart 3.1, Workbench 3.0
cpu Motorola mc 68EC020
speed 14,19 MHz
ram 2 MB
rom 512 kB
hd 1 GB
disk 3,5″ 880kB
graphic 640 x 512 (16) etc.
colors 32
sound 4 channels
ports centronics, RS232, mouse, joysticks (2), RGB, composite video, external audio, bus
The Commodore Amiga 1200 — The Last Mass-Market Amiga
Released in October 1992, the Commodore Amiga 1200 was the last Amiga home computer to achieve significant commercial success and is widely regarded by enthusiasts as the definitive Amiga — the machine that delivered the platform’s full potential in an accessible, affordable package. Using a 14 MHz Motorola 68EC020 processor and the new Advanced Graphics Architecture (AGA) chipset, the A1200 offered 256,000 simultaneous colours from a palette of 16.7 million, a built-in IDE hard drive connector, and PCMCIA expansion capability at a price of £399 — genuinely competitive with comparable PC and Atari ST machines of the era.
The AGA Chipset
The AGA (Advanced Graphics Architecture) chipset was a major upgrade from the ECS chipset of earlier Amigas. The new Lisa chip (replacing Denise) could display up to 256,000 simultaneous colours in the new display modes, up from the OCS/ECS maximum of 64 in HAM mode. The Alice chip (replacing Fat Agnus) doubled the chip RAM bandwidth and improved sprite capabilities. These enhancements made the A1200 significantly more capable for games and multimedia applications, closing much of the gap that had opened between the Amiga and the increasingly capable PC VGA standard.
The 68EC020 Processor
The 14 MHz 68EC020 was a 32-bit processor — a significant upgrade from the 16-bit 68000 of the A500 — providing better performance for the growing range of 32-bit Amiga software. Combined with the AGA chipset and a standard 2 MB of chip RAM (expandable via the trapdoor slot), the A1200 was a genuinely capable machine for gaming, music production, video titling, and programming.
The Enthusiast’s Amiga
The A1200 arrived too late to save Commodore — the company declared bankruptcy in April 1994 — but it remained in production under various ownership changes and continues to have an extraordinarily active enthusiast community today. Modern accelerator cards, memory expansions, and software updates have transformed surviving A1200s into remarkably capable machines, and new games and demos continue to be released for the platform decades after its commercial discontinuation.
